E-XTEQ 512EVO 12V 50A Automatic Battery Charger and Maintainer
- Product SKU: EXQ-512EVO
Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
• All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
• What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More

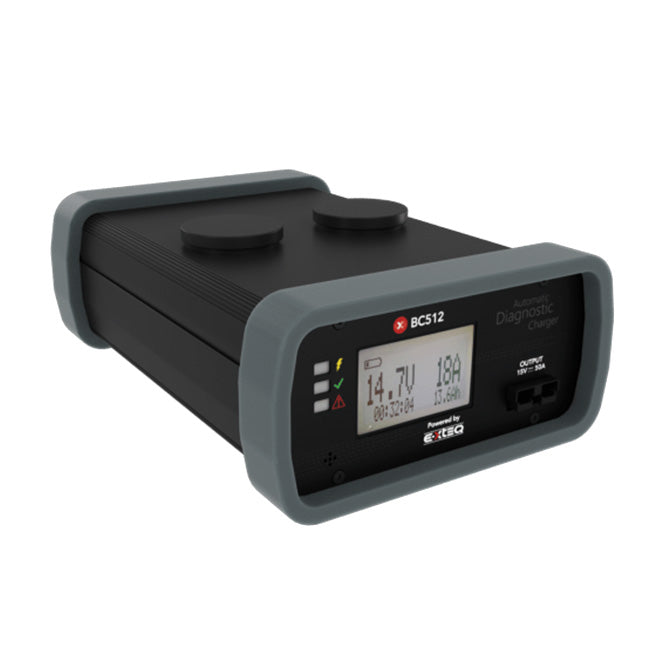

E-XTEQ 512EVO Battery Charger
Model: 512EVO
The E-XTEQ 512EVO is a fully automatic 12V/50A battery charger and maintainer designed for Flooded, AGM, EFB, and Li-Ion batteries. Its intuitive, icon-based interface allows technicians to operate the device without configuration or training. Built for garage and service lane environments, the 512EVO supports diagnostic and ECU reflash operations while ensuring safety through features like reverse polarity protection. The unit includes magnetic mounting, a rugged aluminum body, and integrated display. Compared to the 1012EVO, the 512EVO is lighter (12.3 lbs vs. 21.2 lbs), compact, and delivers 50A charging versus 100A on the 1012EVO.
Benefits
- Fully Automatic: No settings needed—just plug in and charge.
- Robust & Flexible: Built for workshop use with shockproof body and magnetic mounts.
- User Friendly: Icon-only display allows operation without training or language barriers.
- Safe: Equipped with reverse polarity protection and low ripple output.

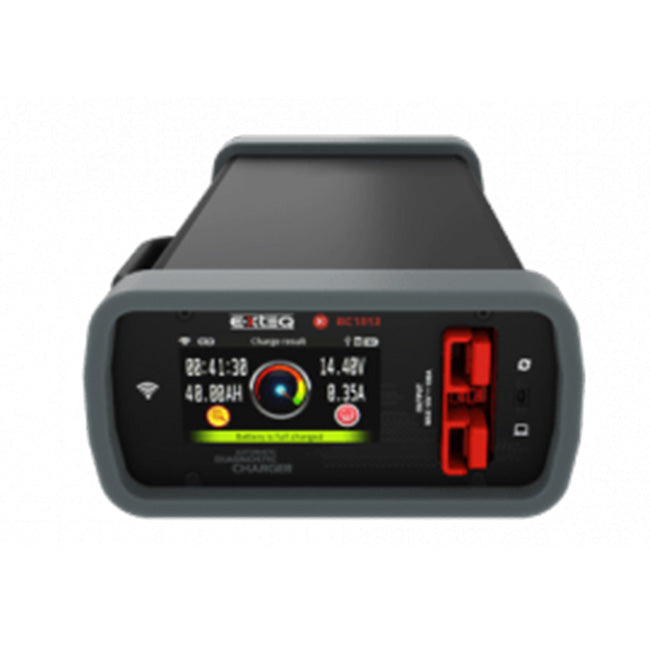

E-XTEQ 512EVO vs 1012EVO Comparison
| Feature | 512EVO | 1012EVO |
|---|---|---|
| Max Current | 50A | 100A |
| Automatic Battery Diagnosis | Yes | Yes |
| Battery Chemistry | Flooded, AGM, EFB, Li-Ion | Flooded, AGM, EFB, Li-Ion |
| ECU Reflash | Yes | Yes |
| Display | 4.3″ LED | 4.3″ LED + Touch Panel |
| Dimensions (in.) | 10.6 x 4.7 x 13.5 | 17.3 x 4.7 x 13.5 |
| Weight | 12.3 lbs (5.6 kg) | 21.2 lbs (9.5 kg) |
| Noise Level | 65 dB @ 50A | Not listed |
| Database Compatibility | Not Listed | Yes |
| Software Updates | Optimus | Optimus |
| Warranty Code Generator | Not Listed | Not Listed |
View our website www.repquip.com for other New and Used Equipment we sell.
E-XTEQ 512EVO Battery Charger
Model: 512EVO
The E-XTEQ 512EVO is a fully automatic 12V/50A battery charger and maintainer designed for Flooded, AGM, EFB, and Li-Ion batteries. Its intuitive, icon-based interface allows technicians to operate the device without configuration or training. Built for garage and service lane environments, the 512EVO supports diagnostic and ECU reflash operations while ensuring safety through features like reverse polarity protection. The unit includes magnetic mounting, a rugged aluminum body, and integrated display. Compared to the 1012EVO, the 512EVO is lighter (12.3 lbs vs. 21.2 lbs), compact, and delivers 50A charging versus 100A on the 1012EVO.
Benefits
- Fully Automatic: No settings needed—just plug in and charge.
- Robust & Flexible: Built for workshop use with shockproof body and magnetic mounts.
- User Friendly: Icon-only display allows operation without training or language barriers.
- Safe: Equipped with reverse polarity protection and low ripple output.
E-XTEQ 512EVO vs 1012EVO Comparison
| Feature | 512EVO | 1012EVO |
|---|---|---|
| Max Current | 50A | 100A |
| Automatic Battery Diagnosis | Yes | Yes |
| Battery Chemistry | Flooded, AGM, EFB, Li-Ion | Flooded, AGM, EFB, Li-Ion |
| ECU Reflash | Yes | Yes |
| Display | 4.3″ LED | 4.3″ LED + Touch Panel |
| Dimensions (in.) | 10.6 x 4.7 x 13.5 | 17.3 x 4.7 x 13.5 |
| Weight | 12.3 lbs (5.6 kg) | 21.2 lbs (9.5 kg) |
| Noise Level | 65 dB @ 50A | Not listed |
| Database Compatibility | Not Listed | Yes |
| Software Updates | Optimus | Optimus |
| Warranty Code Generator | Not Listed | Not Listed |
- Charging Voltage: 15.1V (charge), 13.5V (float)
- Output Current: 50A max
- Supported Batteries: Flooded, AGM, EFB, Li-Ion
- Display: Backlit monochrome, 128x64 px
- Interface: Icons only, with buzzer and status LEDs
- Housing: Aluminum with shockproof rubber sides and magnets
- Size: 10.6 x 4.7 x 13.5 in.
- Weight: 12.3 lbs (5.6 kg, without cables)
- Operating Temp: -5°F to 104°F (-15°C to +40°C)
- Storage Temp: -22°F to 140°F (-30°C to +60°C)
- Humidity: 20–80% non-condensing
- Connectivity: SUBD9 for updates and diagnostics
- Input Power: 90–264 VAC, <10A at 115V, PFC 97%
- Noise Level: 65 dB at 50A
