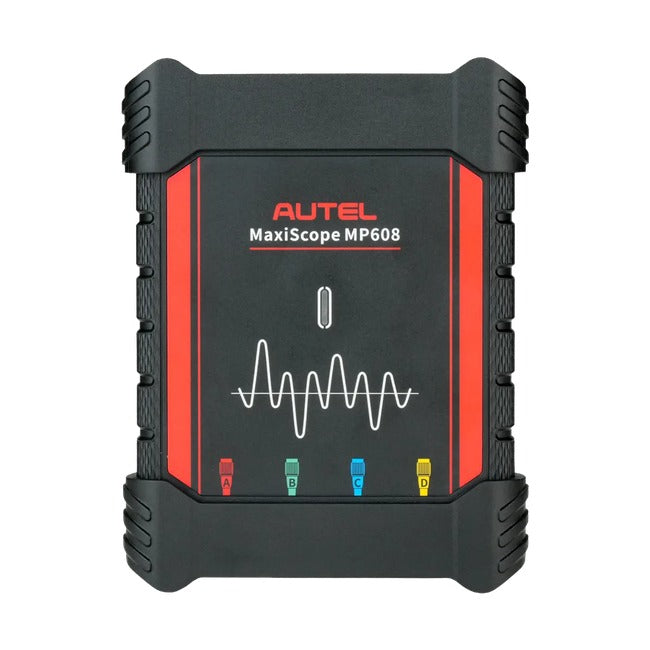

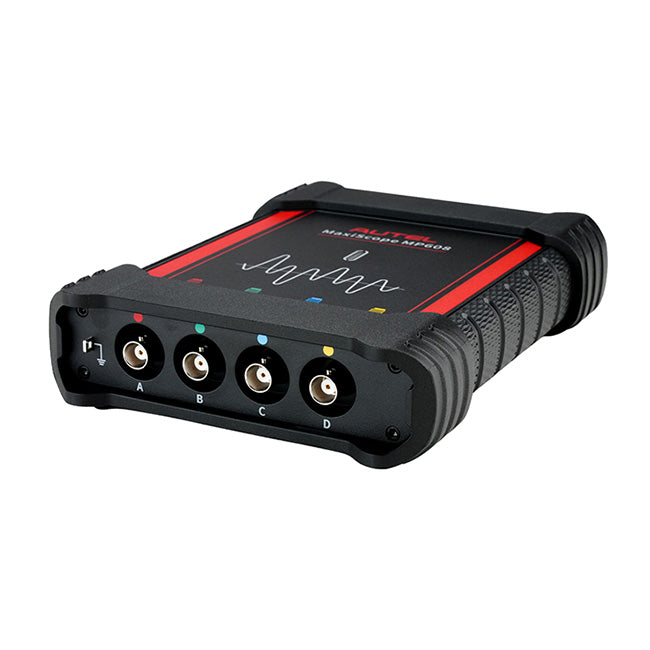

Autel MaxiScope MP608 4-Channel Automotive Oscilloscope

Part Number: MP608

The Autel MaxiScope MP608 is a professional, USB-powered four-channel automotive oscilloscope designed for advanced electrical, electronic, ignition, sensor, actuator, and vehicle-network diagnostics. It transforms a compatible Autel MaxiSYS tablet or Windows PC into a high-precision waveform diagnostic platform, giving technicians the tools needed to capture, analyze, compare, and document vehicle signals.

With 12-bit vertical resolution, 20 MHz bandwidth, sampling speeds up to 80 MS/s, and ±1% DC measurement accuracy, the MP608 provides detailed waveform capture for intermittent and difficult-to-reproduce faults. Advanced triggering can automatically capture signal events, while custom math channels simplify waveform calculations and comparative analysis.

The MaxiScope software includes automatic probe configuration, guided automotive test procedures, reference waveforms, connection diagrams, and serial-bus decoding for CAN, CAN FD, LIN, FlexRay, UART, and I²C networks. The complete kit includes color-coded test leads, ignition pickup, probes, attenuators, clips, USB cable, hanging strap, and a soft carrying case for organized shop or mobile use.

Key Features

• Professional four-channel automotive oscilloscope
• USB-powered operation with no internal battery or separate power lead required
• 12-bit vertical resolution for detailed waveform analysis
• 20 MHz bandwidth
• Maximum sampling rate up to 80 MS/s using one or two supported channel combinations
• 20 MS/s sampling with three or four active channels
• ±1% DC measurement accuracy
• Advanced trigger actions help capture intermittent and hard-to-reproduce faults
• Custom math channels simplify waveform calculations and signal comparisons
• Automatic probe configuration reduces setup time and configuration errors
• Built-in automotive test library with guided procedures and reference waveforms
• Connection diagrams help technicians set up component and circuit tests correctly
• Serial-bus decoding supports CAN, CAN FD, LIN, FlexRay, UART, and I²C
• 32-million-sample shared buffer memory
• Complete diagnostic lead, probe, pickup, clip, and attenuator kit included
• Soft carrying case included for storage and portability

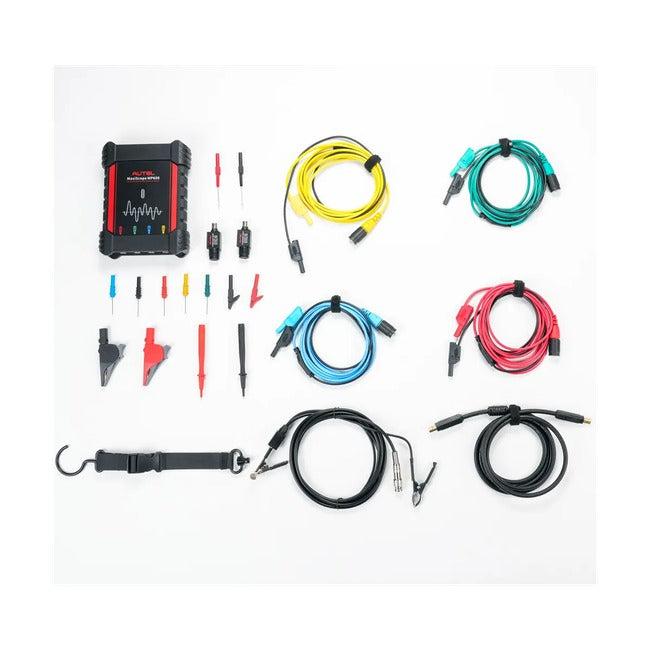

Included Components

• MaxiScope MP608 four-channel automotive oscilloscope
• Autel USB Cable V2
• Red scope test lead
• Green scope test lead
• Blue scope test lead
• Yellow scope test lead
• Secondary ignition pickup
• Red and black flexible back-pinning probes
• Back-pinning probe set
• Red and black multimeter probes
• Red and black small alligator clips
• Red and black large dolphin clips
• 20:1 attenuators
• Adjustable hanging strap with hook

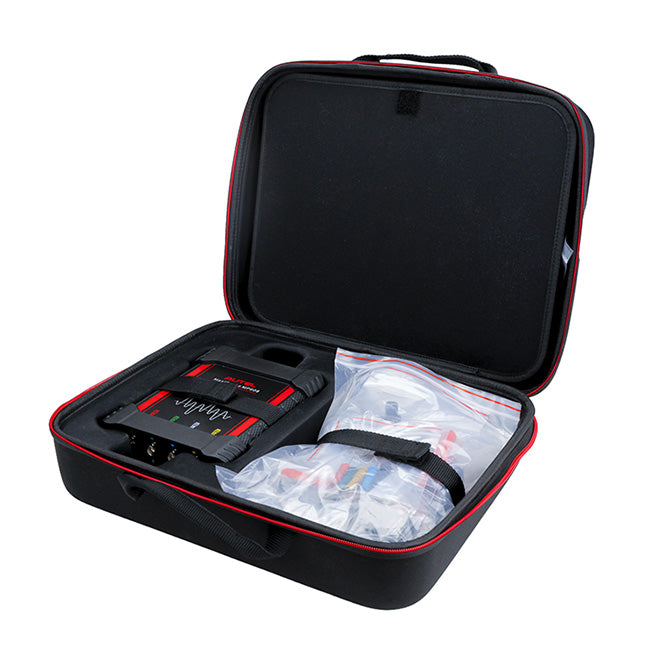

• Soft carrying and storage case

Compatible Platforms

• Autel MaxiSYS MS906 MAX
• Autel MaxiSYS MS906 PRO2-TS
• Autel MaxiSYS MS909 S2
• Autel MaxiSYS MS908CV II
• Autel MaxiSYS MS909CV
• Other supported next-generation Autel MaxiSYS tablets, subject to current software compatibility
• Compatible Windows PC

Software Functions

• Waveform display, measurement, saving, printing, and playback
• Automotive presets and guided component tests
• Reference waveform library
• Advanced and automatic trigger functions
• Custom math channels
• Automatic scaling and probe configuration
• Serial-bus protocol decoding
• Spectrum view and signal analysis
• Firmware and application updates through compatible Autel software

Optional Accessories Sold Separately

• 65A AC/DC current clamp
• 650A AC/DC current clamp
• Coil-on-plug probe
• High-tension extension leads
• Battery clips
• Additional oscilloscope accessory kits and specialty probes

Warranty Information

Includes a 1-year limited warranty.

• Product Type: Automotive oscilloscope
• Part Number: MP608
• Channels: 4
• Bandwidth: 20 MHz
• Maximum Sample Rate, 1 or 2 Supported Channels: 80 MS/s
• Maximum Sample Rate, 3 or 4 Channels: 20 MS/s
• Input Range, Full Scale: ±50 mV to ±200 V
• Sensitivity: 10 mV/div to 40 V/div
• Input Coupling: AC/DC
• Input Impedance: 1 MΩ in parallel with 25 pF
• Vertical Resolution: 12-bit
• Buffer Memory: 32 million samples shared among active channels
• Time Base Range: 100 ns/div to 1000 s/div
• Connection: USB 2.0
• Power Source: Powered through the connected USB port
• DC Accuracy: ±1%
• Storage Humidity: 5% to 95% RH, non-condensing
• Warranty: 1-year limited warranty
• UPC: 849438037956
