Autel MaxiSYS IA900LDWT Alignment & ADAS System
- Product SKU: IA900LDWT
What is SHIPPING QUOTE ?
Simply click the 'Shipping Quote' button to add your equipment to our quote form.
Complete the form and submit it - we'll promptly send you a shipping quote as soon as we can.
Remember to check both your inbox and spam folder for our response.
Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
• All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
• What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More
Autel MaxiSYS IA900LDWT Wheel Alignment and ADAS Calibration System with LDW Targets and ULTRAADAS Tablet
Part Number: IA900LDWT
The Autel MaxiSYS IA900LDWT is a complete four-wheel alignment and Lane Departure Warning calibration package that combines the IA900WA robotic alignment and ADAS frame, a comprehensive LDW target set, and the MaxiSYS ULTRAADAS diagnostic tablet. The tablet includes preloaded wheel-alignment and ADAS calibration software, allowing technicians to perform advanced diagnostics, precise alignments, and static forward-facing camera calibrations through one integrated system and workflow.

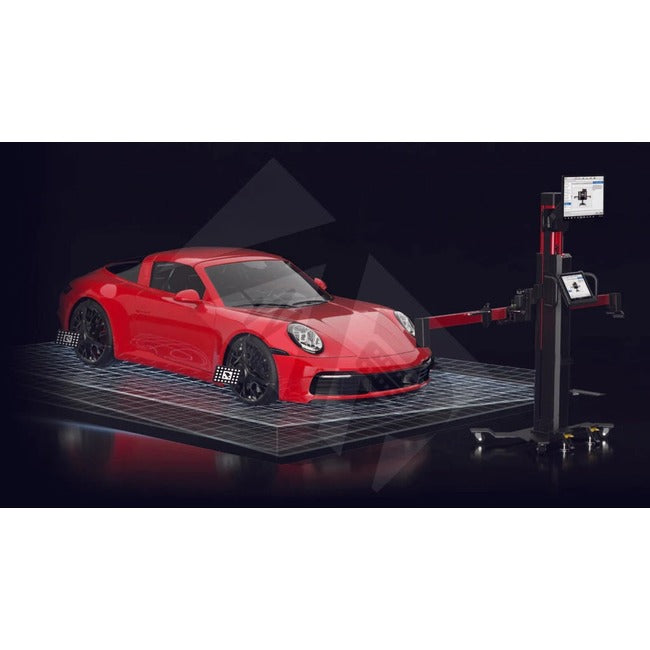

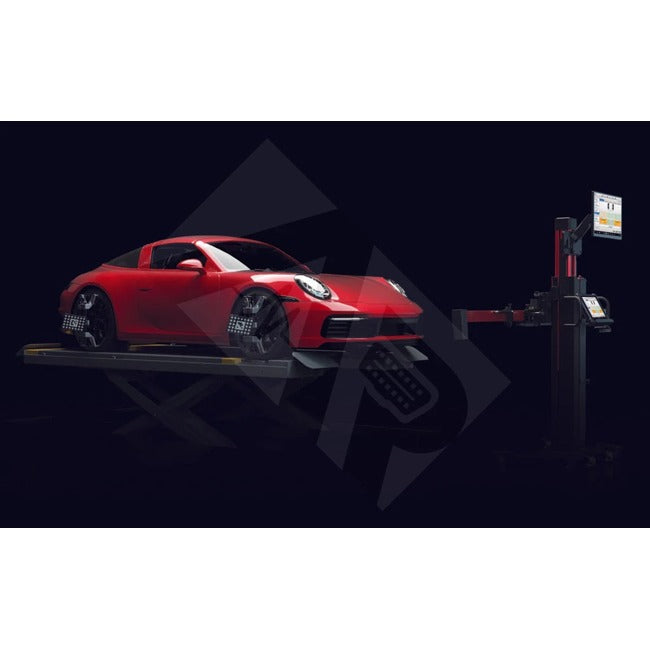

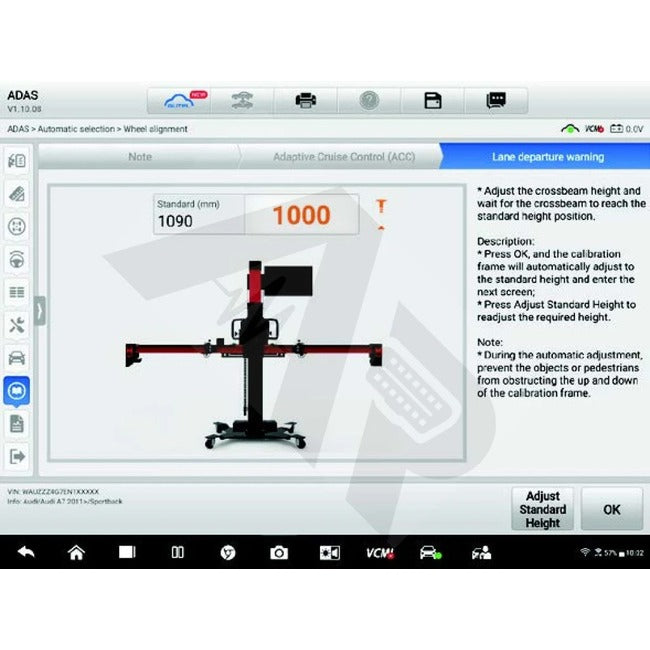

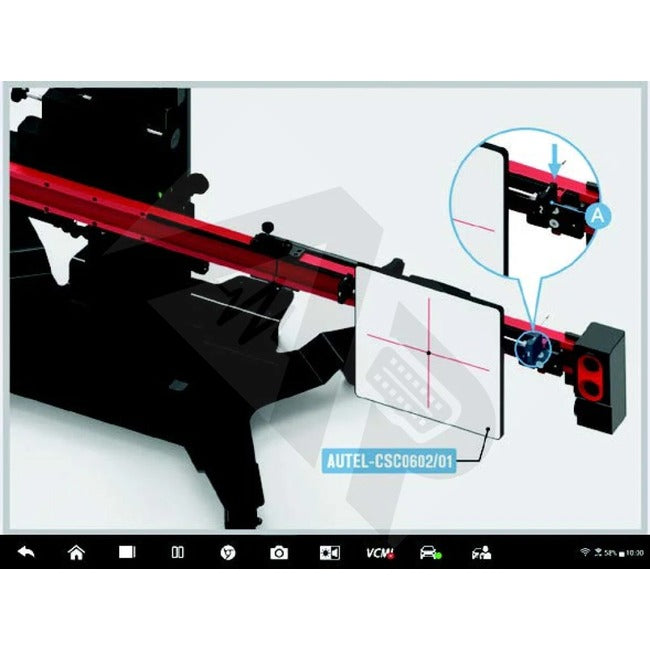

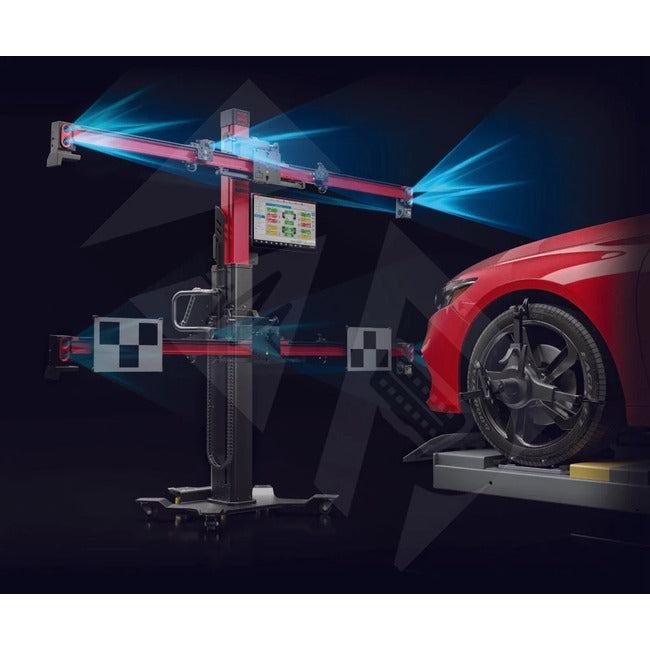

Six high-resolution positioning and tracking cameras measure wheel alignment angles and automatically monitor vehicle height as the shop lift is raised or lowered. Robotic frame movement, automatic target-height adjustment, and optical target-position validation help establish the correct frame angle, distance, and offset before calibration. The included 24 in. touchscreen display can cast to and from the ULTRAADAS tablet, allowing technicians to control the system from either screen.

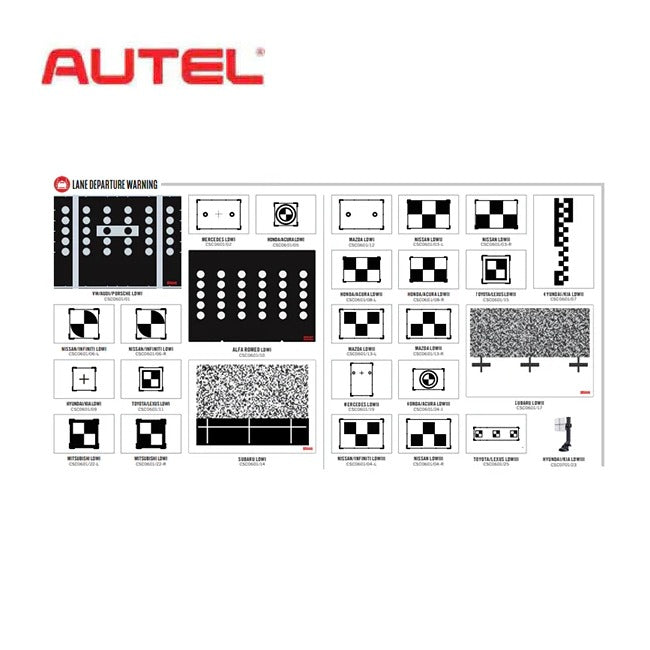

The Lane Departure Warning package includes LDW I, LDW II, and LDW III targets and pattern boards for broad domestic, Asian, and European vehicle coverage. Illustrated instructions, live readings, required tools, and adjustment locations are displayed on a single screen to support a consistent, efficient workflow.
Key Features
- Complete four-wheel alignment and Lane Departure Warning ADAS calibration package
- Includes MaxiSYS ULTRAADAS wireless diagnostic tablet with preloaded alignment and ADAS software
- Includes MaxiFLASH vehicle communication interface
- Includes LDW I, LDW II, and LDW III targets and pattern boards
- Six high-resolution positioning and tracking cameras
- Alignment reading accuracy to 0.02 degrees
- Cameras automatically track vehicle height as the shop lift moves
- Robotic frame movement and automatic target-height positioning
- 24 in. frame-mounted touchscreen display
- Frame display and ULTRAADAS tablet can cast to and from each other
- Optical target-position validation verifies angle, distance, and offset
- Illustrated alignment instructions, live readings, required tools, and adjustment locations
- Vehicle coverage for U.S., Asian, and European vehicles from 1996 and newer
- Folding crossbar and mobile frame for easier movement and storage
- One-year limited warranty

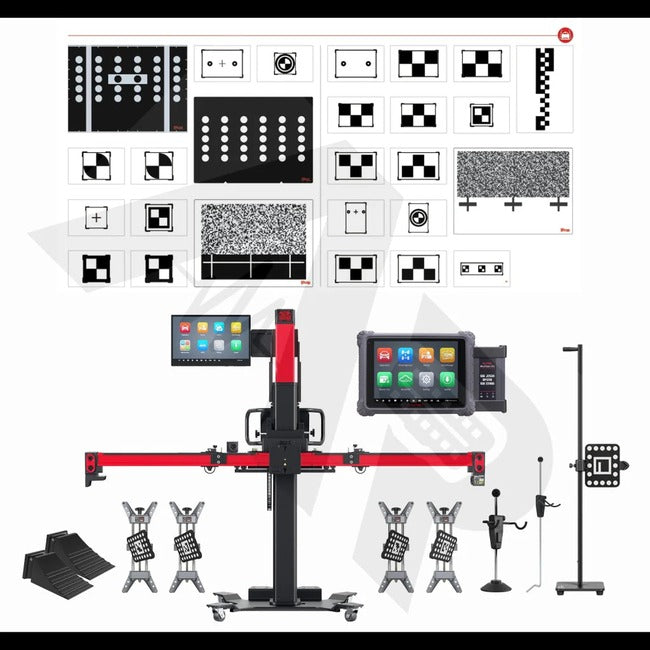

Included Components
- IA900WA mobile wheel alignment and ADAS calibration frame
- 24 in. touchscreen display mounted to the frame
- 12.7 in. MaxiSYS ULTRAADAS wireless touchscreen tablet
- MaxiFLASH VCI
- Preloaded wheel-alignment and ADAS calibration software
- 4 wheel clamps with camera targets
- 4 wheel targets
- Distance target
- Steering wheel lock
- Brake pedal lock
- 2 wheel chocks
- LDW I pattern and target package
- LDW II pattern and target package
- LDW III target package
- Dedicated target storage case
- Tablet cradle with built-in charging capability
Calibration Coverage Included
- Lane Departure Warning camera calibration

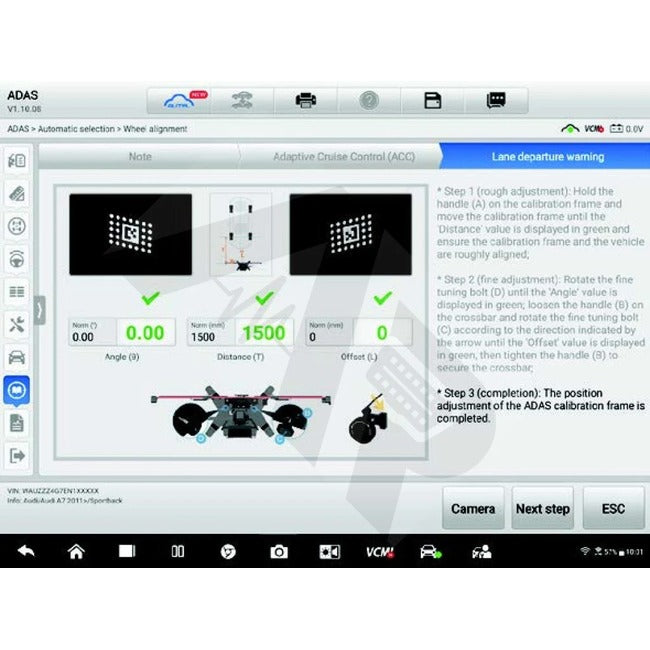

- Forward-facing camera target positioning
- Static ADAS camera calibration procedures supported by the included LDW targets
- Wheel alignment measurements and adjustments

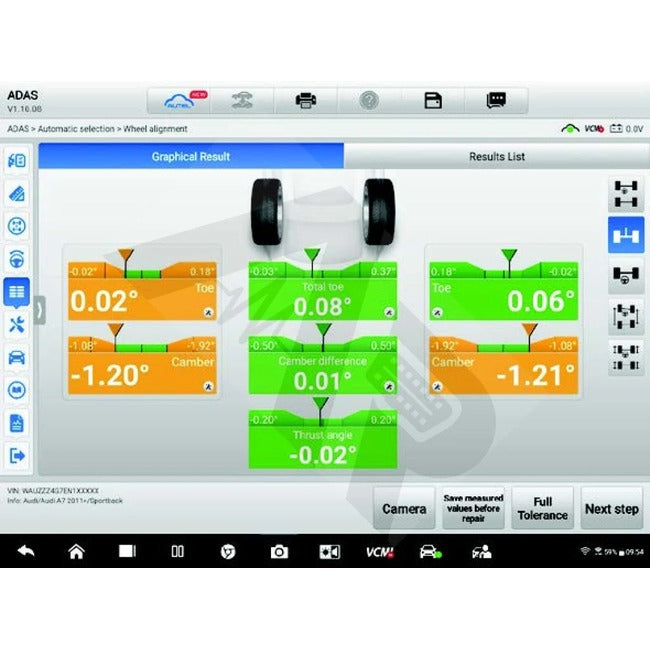

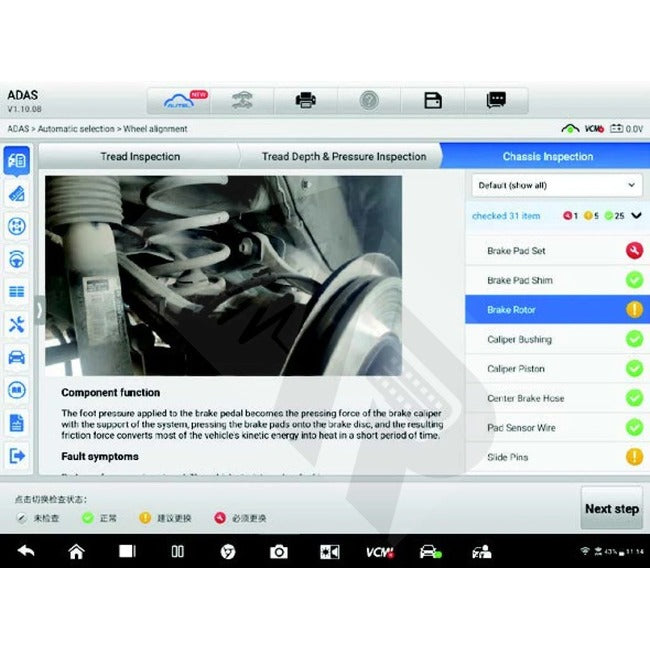

- Vehicle inspection, live alignment readings, chassis symmetry, and tire-diameter analysis
- Wheel-off, raised-vehicle, and advanced alignment adjustment procedures
Additional Calibration Equipment Sold Separately
- Targets and calibration components for Around View Monitoring systems
- Blind Spot Detection calibration equipment
- Adaptive Cruise Control radar calibration equipment
- LIDAR calibration equipment
- Night Vision calibration equipment
- Rear Collision Warning calibration equipment
Warranty Information
Includes a 1-year limited warranty. The purchase of an IA900 system may also include in-shop setup and onboarding training performed by an Autel ADAS specialist. Training availability should be confirmed at the time of purchase.
View our website www.repquip.com for other New and Used Equipment we sell.
Autel MaxiSYS IA900LDWT Wheel Alignment and ADAS Calibration System with LDW Targets and ULTRAADAS Tablet
Part Number: IA900LDWT
The Autel MaxiSYS IA900LDWT is a complete four-wheel alignment and Lane Departure Warning calibration package that combines the IA900WA robotic alignment and ADAS frame, a comprehensive LDW target set, and the MaxiSYS ULTRAADAS diagnostic tablet. The tablet includes preloaded wheel-alignment and ADAS calibration software, allowing technicians to perform advanced diagnostics, precise alignments, and static forward-facing camera calibrations through one integrated system and workflow.
Six high-resolution positioning and tracking cameras measure wheel alignment angles and automatically monitor vehicle height as the shop lift is raised or lowered. Robotic frame movement, automatic target-height adjustment, and optical target-position validation help establish the correct frame angle, distance, and offset before calibration. The included 24 in. touchscreen display can cast to and from the ULTRAADAS tablet, allowing technicians to control the system from either screen.
The Lane Departure Warning package includes LDW I, LDW II, and LDW III targets and pattern boards for broad domestic, Asian, and European vehicle coverage. Illustrated instructions, live readings, required tools, and adjustment locations are displayed on a single screen to support a consistent, efficient workflow.
Key Features
- Complete four-wheel alignment and Lane Departure Warning ADAS calibration package
- Includes MaxiSYS ULTRAADAS wireless diagnostic tablet with preloaded alignment and ADAS software
- Includes MaxiFLASH vehicle communication interface
- Includes LDW I, LDW II, and LDW III targets and pattern boards
- Six high-resolution positioning and tracking cameras
- Alignment reading accuracy to 0.02 degrees
- Cameras automatically track vehicle height as the shop lift moves
- Robotic frame movement and automatic target-height positioning
- 24 in. frame-mounted touchscreen display
- Frame display and ULTRAADAS tablet can cast to and from each other
- Optical target-position validation verifies angle, distance, and offset
- Illustrated alignment instructions, live readings, required tools, and adjustment locations
- Vehicle coverage for U.S., Asian, and European vehicles from 1996 and newer
- Folding crossbar and mobile frame for easier movement and storage
- One-year limited warranty
Included Components
- IA900WA mobile wheel alignment and ADAS calibration frame
- 24 in. touchscreen display mounted to the frame
- 12.7 in. MaxiSYS ULTRAADAS wireless touchscreen tablet
- MaxiFLASH VCI
- Preloaded wheel-alignment and ADAS calibration software
- 4 wheel clamps with camera targets
- 4 wheel targets
- Distance target
- Steering wheel lock
- Brake pedal lock
- 2 wheel chocks
- LDW I pattern and target package
- LDW II pattern and target package
- LDW III target package
- Dedicated target storage case
- Tablet cradle with built-in charging capability
Calibration Coverage Included
- Lane Departure Warning camera calibration
- Forward-facing camera target positioning
- Static ADAS camera calibration procedures supported by the included LDW targets
- Wheel alignment measurements and adjustments
- Vehicle inspection, live alignment readings, chassis symmetry, and tire-diameter analysis
- Wheel-off, raised-vehicle, and advanced alignment adjustment procedures
Additional Calibration Equipment Sold Separately
- Targets and calibration components for Around View Monitoring systems
- Blind Spot Detection calibration equipment
- Adaptive Cruise Control radar calibration equipment
- LIDAR calibration equipment
- Night Vision calibration equipment
- Rear Collision Warning calibration equipment
Warranty Information
Includes a 1-year limited warranty. The purchase of an IA900 system may also include in-shop setup and onboarding training performed by an Autel ADAS specialist. Training availability should be confirmed at the time of purchase.
- System Type: Mobile four-wheel alignment and ADAS calibration system with LDW targets and diagnostic tablet
- Part Number: IA900LDWT
- Base Frame: MaxiSYS IA900WA
- Vehicle Coverage: U.S., Asian, and European vehicles from 1996 and newer
- ADAS Coverage Included: Lane Departure Warning camera calibration
- Alignment Accuracy: 0.02 degrees
- Positioning and Tracking Cameras: 6 high-resolution cameras
- Frame-Mounted Display: 24 in. touchscreen
- Included Tablet: MaxiSYS ULTRAADAS wireless touchscreen tablet
- Tablet Display Size: 12.7 in.
- Included VCI: MaxiFLASH VCI
- Software: Wheel-alignment and ADAS calibration software included
- Crossbar and Target Minimum Height: 6 in.
- Crossbar and Target Maximum Height: 7 ft.
- Frame Pallet Shipping Weight: 655 lb.
- Frame Pallet Shipping Size: 86 in. L x 52 in. W x 42 in. H
- LDW Package Pallet Shipping Weight: 440 lb.
- LDW Package Pallet Shipping Size: 48 in. L x 59 in. W x 44 in. H
- Warranty: 1-year limited warranty
- UPC: 849438014315
