CEMB ARGOS X Touchless Wheel Alignment System - FULL Version

CEMB ARGOS X Touchless Wheel Alignment System - FULL Version

MODEL: ARGOS X FULL

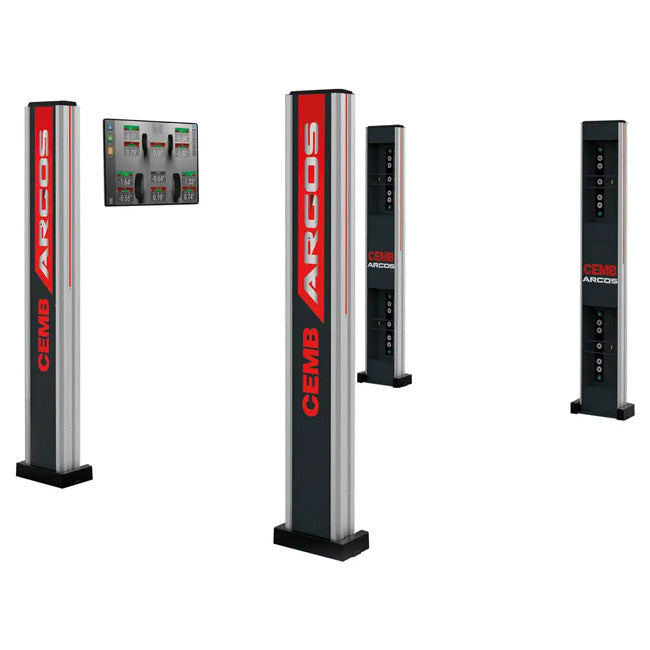

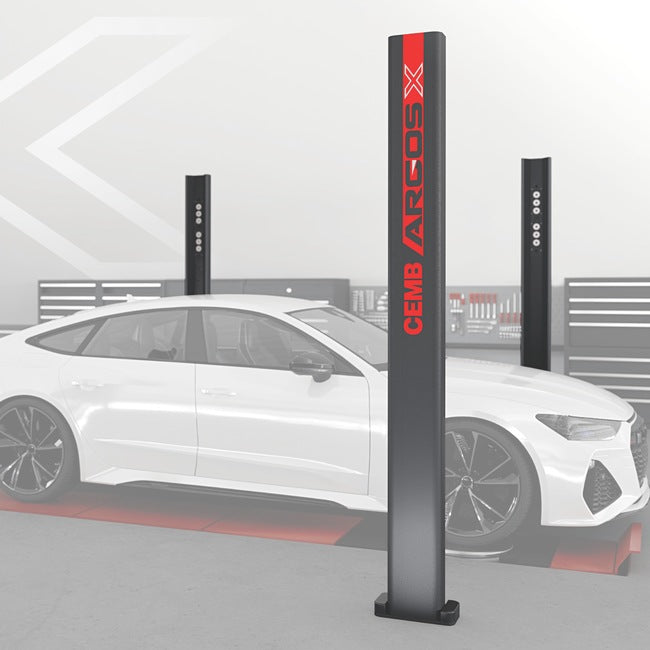

The CEMB ARGOS X FULL is a touchless four-wheel alignment system designed for both fast reception-lane inspections and complete alignment adjustment workflows. Using advanced imaging cameras, ARGOS X measures all four wheels simultaneously with zero wheel contact, eliminating the need for traditional clamps, targets, or wheel-mounted sensors. Toe and camber measurements are completed in less than 5 seconds while the technician remains in the vehicle.

The FULL version is designed to measure vehicles on the shop floor for reception-lane checks and at a fixed height for alignment adjustments on a lift. Guided vehicle positioning, immediate results, automatic vehicle-specification preselection, and clear diagnostic reports help technicians move quickly from inspection to adjustment while giving customers easy-to-understand alignment information.

ARGOS X is adaptable to existing shop layouts and can be used with existing lifts or pits without additional measurement hardware. CEMB specifies automatic calibration with no periodic calibration checks required, no moving parts in the working area, and accurate measurements even when the lift is not perfectly level.

Key Features

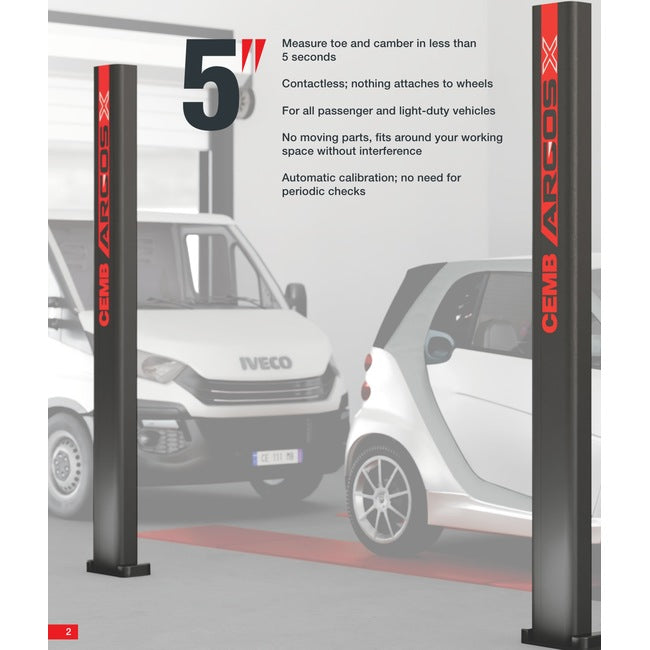

• Touchless four-wheel alignment system with zero wheel contact
• Measures toe and camber in less than 5 seconds
• FULL version supports on-floor reception-lane checks and fixed-height lift adjustments
• No clamps, targets, or wheel-mounted sensors required
• Advanced imaging cameras measure all four wheels simultaneously
• Designed for passenger cars and light-duty vehicles

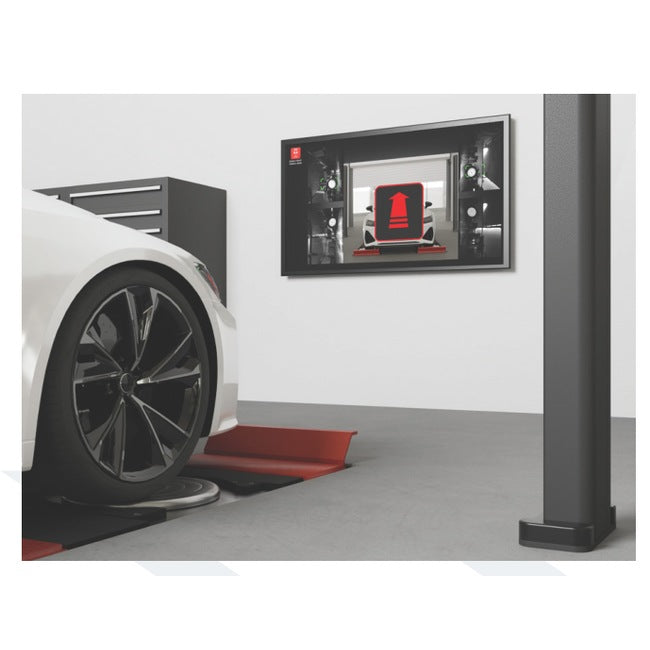

• Guided vehicle positioning with video assistance

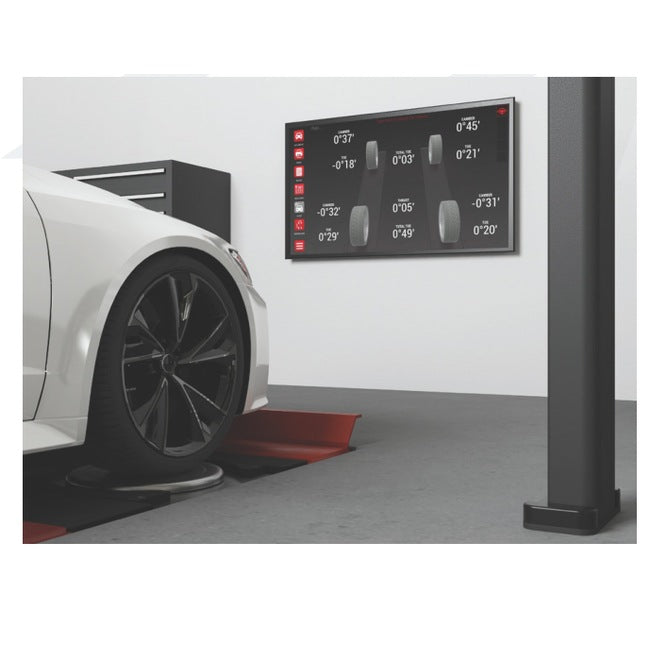

• Immediate toe and camber results
• Rim run-out procedure is not mandatory for the initial toe and camber measurement
• Fast vehicle specification preselection based on vehicle size

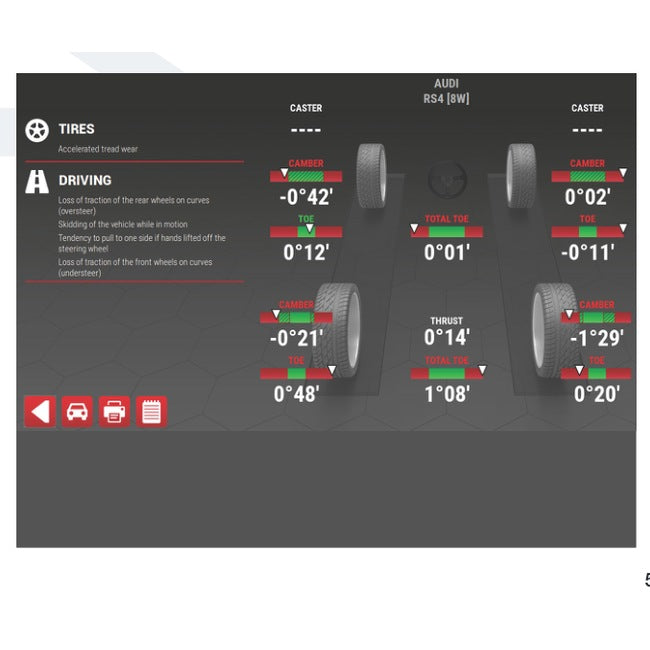

• Complete diagnostic report highlights out-of-spec measurements
• Automatic calibration with no periodic calibration checks required
• No moving parts interfering with the working area
• Compatible with existing lifts and pits
• Accurate measurements even when the lift is not perfectly level
• 110V, single-phase power supply

Standard Accessories

• Automatic Air Locking turnplates
• 50 in. TV with wall mounting kit
• VIN scanner

Optional Accessories

• ARGOS X TV column
• Premium license plate reader
• Database / VIN updates
• Gold Package software and connected-service options

Gold Package Features

• Automatic database updates
• Vehicle readings sent by WhatsApp, SMS, or email
• License-plate recognition for recurrent vehicles when the Premium License Plate Reader is installed
• Software updates
• Remote assistance

Warranty Information

CEMB USA wheel aligners include a 2-year limited parts warranty and 1-year labor warranty in the United States. Wheel aligner warranty coverage begins from the activation date.

• System Type: Touchless four-wheel alignment system
• MODEL: ARGOS X FULL
• Vehicle Applications: Passenger cars and light-duty vehicles
• Toe and Camber Measurement Time: Less than 5 seconds
• Measurement Method: Contactless imaging of all four wheels
• Wheel Clamps Required: No
• Wheel Targets Required: No
• Wheel-Mounted Sensors Required: No
• FULL Version Operation: On-floor reception-lane measurement and fixed-height lift adjustment
• Power Supply: 110V, 1 phase
• Calibration: Automatic
• Periodic Calibration Checks: Not required

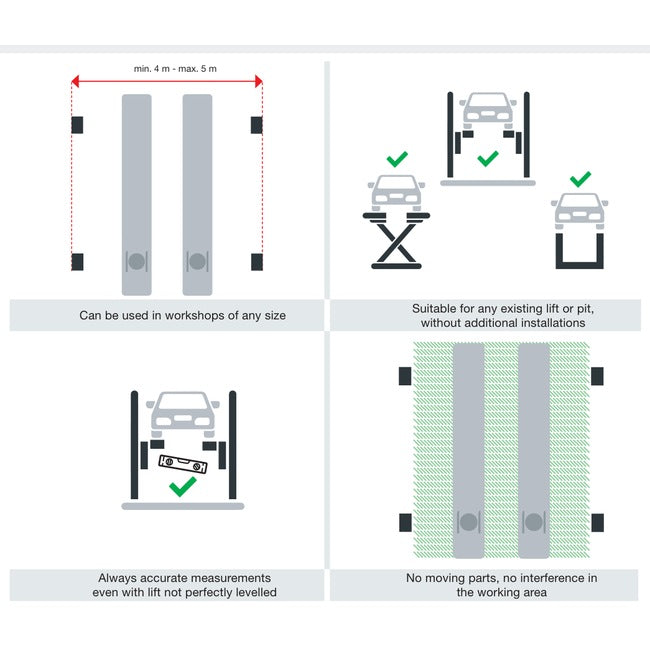

• Recommended Installation Width: 4 to 5 m (approximately 157.5 to 196.9 in.)
• Lift / Pit Compatibility: Existing lifts and pits
• Vehicle Identification: VIN scanner included; premium license plate reader optional

CEMB ARGOS X Brochure

CEMB Wheel Alignment ARGOS X
