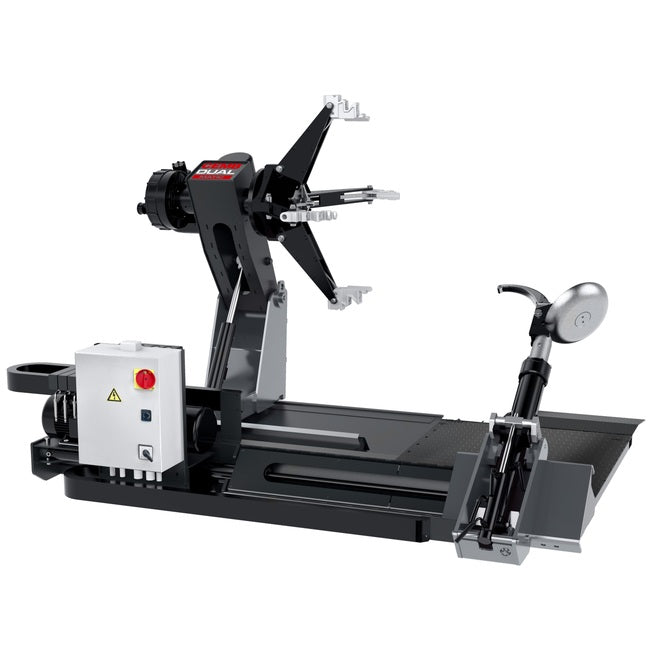

CEMB DUAL MATIC Super-Automatic Heavy Duty Tire Changer

CEMB DUAL MATIC Super-Automatic Heavy Duty Tire Changer

MODEL: DUAL MATIC

The CEMB DUAL MATIC is a super-automatic electro-hydraulic heavy-duty tire changer designed for truck, bus, tractor, agricultural, earthmoving, and other large commercial wheels. Built for demanding professional service environments, its dual-carriage design independently controls the spindle and tool arm to simplify wheel positioning and speed up mounting and demounting operations.

The hydraulic self-centering chuck uses four extended jaws to securely clamp rim sizes from 11 in. to 46 in., with capacity up to 60 in. when equipped with the appropriate optional extensions. DUAL MATIC is engineered to handle extremely large wheels up to 100 in. in diameter, 59 in. wide, and weighing up to 5,070 lb.

A fully hydraulically controlled tool-holder arm provides automatic lifting and rotation, while the oversized 4 in. arm structure is designed for strength and rigidity under heavy loads. A low-voltage portable control console places the primary controls within easy reach and includes standby and emergency-stop functions for safer operation.

Key Features

• Super-automatic electro-hydraulic heavy-duty tire changer
• Designed for truck, bus, tractor, agricultural, and earthmoving wheels
• Fully automatic dual-carriage system with independent spindle and tool-arm movement
• Two-speed carriage movements help speed wheel positioning and service operations
• Hydraulic four-jaw self-centering chuck
• Clamping capacity from 11 in. to 46 in.; up to 60 in. with optional extensions
• Extended 750 mm chuck arms with self-lubricating bushings
• Integrated Teflon pads on the vertical jaw supports
• Fully automatic hydraulic lifting and rotation of the tool-holder arm
• Oversized 4 in. diameter tool-holder arm for maximum rigidity
• Tool can be fully lowered to provide a larger working area
• Full-size reinforced base designed to resist flexing under heavy loads
• Non-slip base frame with standard access ramp
• Low-voltage portable control unit
• Emergency-stop button and standby function
• Standard wired controls; radio-control and air-control configurations available
• Safety devices and motor-protection system for heavy-duty operation
• Suitable for tubeless and tube-type commercial tires

Standard Accessories

• Lever
• Pliers

Optional Accessories (Not Included) and Configurations

• 281 mm rim-protection ring for alloy rims
• Pliers for alloy rims
• Set of four heavy-duty rim extensions
• Pneumatic bead-pressing device
• Radio-controlled command configuration
• Air-operated command box configuration
• Electromagnetic spindle brake

Control and Safety Features

• Portable low-voltage control console
• Intuitive arrangement of control levers, buttons, and pedals
• Emergency-stop control
• Standby function
• Safety devices designed to protect the operator during service
• Motor-protection system for demanding commercial use

Warranty Information

CEMB USA tire changers include a 2-year limited parts warranty and 1-year labor warranty in the United States. Warranty coverage begins from the invoice date. Contact Rep-Quip Sales for complete warranty terms and installation requirements.

• Product Type: Super-automatic electro-hydraulic heavy-duty tire changer
• MODEL: DUAL MATIC
• Vehicle / Wheel Applications: Truck, bus, tractor, agricultural, and earthmoving wheels
• Power Supply: 230V, 3 phase, 60 Hz
• Clamping Capacity: 11 in. to 46 in.; up to 60 in. with optional extensions
• Minimum Central Hole for Clamping: 2.75 in.
• Maximum Wheel Diameter: 100 in.
• Maximum Wheel Width: 59 in.
• Maximum Wheel Weight: 5,070 lb.
• Rotation Speed: 4.5 to 9 rpm
• Machine Weight: 3,196 lb.
• Cylinder Lifting Capacity: Approximately 6,744 lbf
• Hydraulic Unit Motor: Approximately 3.0 to 4.0 hp
• Chuck Rotation: 9 rpm
• Standard Control Connection: Wired

CEMB DUAL MATIC Sell Sheet

CEMB Tire Changer DUAL MATIC
