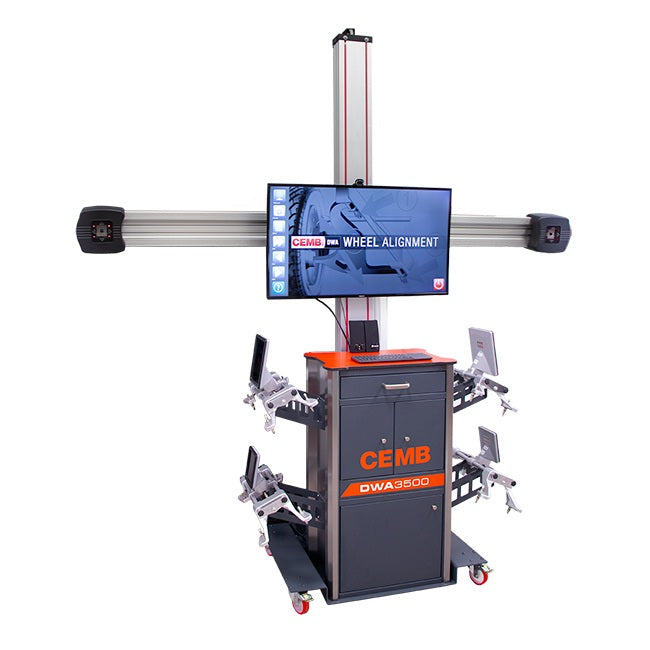

CEMB DWA3500WG/TG 3D-HD Wheel Alignment System with Tire Grabbers

CEMB DWA3500WG/TG 3D-HD Wheel Alignment System with Tire Grabbers

MODEL: DWA3500WG/TG

The CEMB DWA3500WG / TG is a professional 3D-HD wheel alignment system for cars and light commercial vehicles. It combines an automatic motorized camera boom, high-definition targets, advanced CEMB alignment software, and 3-point tire-contact grabbers designed to secure the wheel assembly without conventional rim-edge clamping.

CEMB USA's current manufacturer page identifies the tire-grabber configuration as DWA3500TG, while CEMB's U.S. dealer channel also uses the DWA3500WG designation for the wheel-grabber package. Both CEMB-branded flyers describe the same 3-point tire-contact clamp concept. This Rep-Quip listing covers that wheel-grabber / tire-grabber configuration under both model references.

The motorized camera tower automatically follows the targets as the lift is raised or lowered, eliminating manual camera-height adjustment. A frontal assistance camera helps guide the vehicle onto the lift, while the 3D-HD system measures alignment angles as well as wheelbase, track, diagonals, and wheel diameter to help identify accident damage, tire-pressure concerns, and other vehicle conditions.

Key Features

• Professional 3D-HD wheel alignment system for cars and light commercial vehicles
• Automatic motorized camera boom follows the vehicle as the lift height changes
• Four HD targets with no electronics or batteries

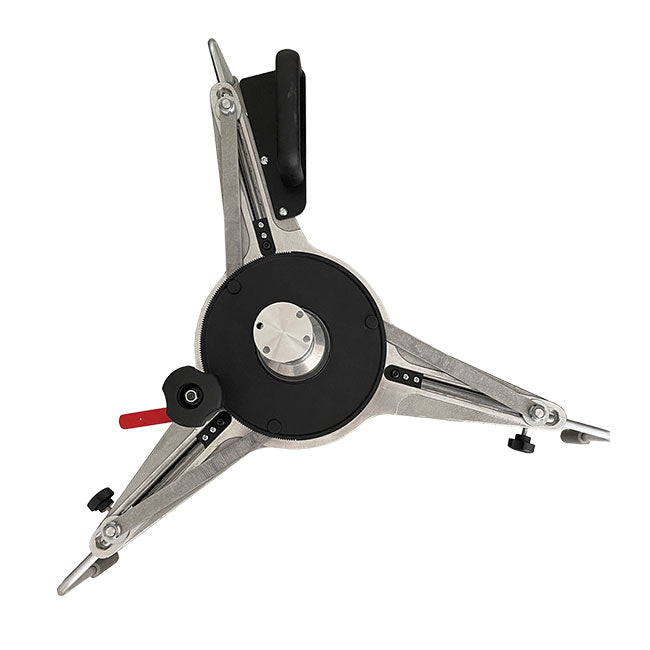

• 3-point tire-contact wheel / tire grabbers
• Wheel clamp range: approximately 12 in. to 24 in.
• Advanced CEMB alignment software with guided procedures
• Extensive vehicle alignment database with regular updates
• Frontal assistance video camera helps guide vehicles onto the lift
• Single raised-wheel run-out procedure for tight work areas and lifts with stairs
• Two-target measurement mode supports long vehicles
• Wheelbase, track, and diagonal measurements help identify collision damage
• Wheel-diameter measurement can help identify possible tire-pressure problems
• Caster-angle and friction-range measurement
• AUDIT function helps identify driving problems beyond standard alignment specifications
• Redesigned cabinet with drawers and accessory storage
• Industrial Windows computer with SSD storage
• Wi-Fi connectivity for automatic software updates
• Portable / mobile trolley configuration included with WG/TG package flyers

WG / TG Model Naming

• DWA3500WG: CEMB-branded U.S. dealer-channel designation using the term Wheel Grabbers
• DWA3500TG: Current CEMB USA manufacturer designation using the term Tire Grabbers
• Both flyers specify 3-point tire-contact clamps

Standard Accessories

• Four HD targets
• Four 3-point tire-contact wheel / tire grabbers
• Brake pedal depressor
• Steering wheel holder
• Mobile trolley

Optional Accessories (Not Included)

• VIN Code Scanner - CEMB GBT4430
• Pin Plate Adapter - CEMB 41FFA6478
• Premium turntables
• 32 in. monitor upgrade / configuration where applicable
• Automatic locking / unlocking turntables

Alignment and Diagnostic Functions

• Toe, camber, caster, and steering-angle measurement
• Wheelbase measurement
• Track-width measurement
• Diagonal measurement
• Wheel-diameter measurement
• Raised-wheel run-out
• Two-target mode for long vehicles
• AUDIT vehicle-diagnostic function

Warranty Information

CEMB USA wheel aligners include a 2-year limited parts warranty and 1-year labor warranty in the United States. Wheel-aligner warranty coverage begins from the activation date. Contact Rep-Quip Sales for current warranty and installation terms.

• Product Type: 3D-HD wheel alignment system with automatic camera boom
• MODEL: DWA3500WG / DWA3500TG
• Vehicle Applications: Cars and light commercial vehicles
• Power Supply: 110V / 115V, 1 phase, 50-60 Hz
• Wheel Clamp Type: 3-point tire-contact grabbers
• Wheel Clamp Range: 12 in. to 24 in.
• Monitor: 32 in. standard on WG/TG flyers
• Camera System: Automatic motorized HD camera boom
• Target Type: Passive HD targets with no electronics or batteries

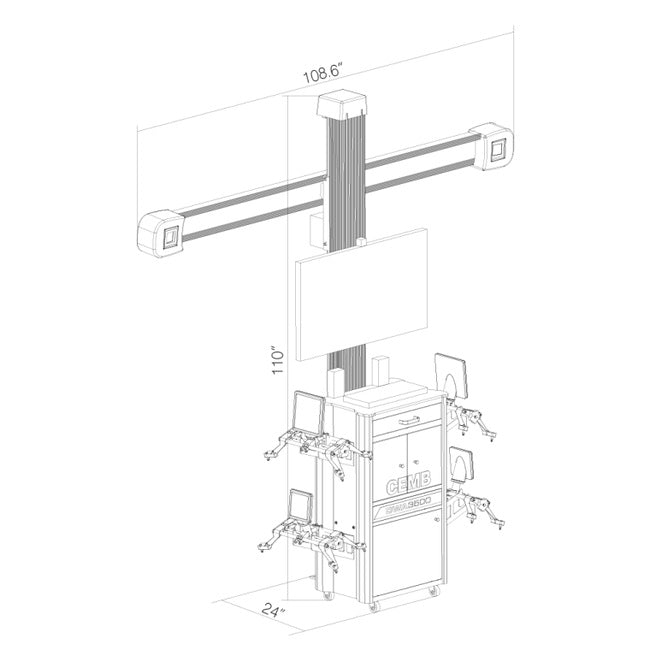

• Shipping Weight: Approximately 685 lb. (310 kg)
• Minimum Camera Distance from Turn Plate Center: Approximately 5.5 ft.
• Recommended Camera Distance from Turn Plate Center: Approximately 6.5 ft.
• Maximum Camera Distance from Turn Plate Center: Approximately 7.5 ft.
• Computer Platform: Windows with SSD storage
• Connectivity: Wi-Fi

CEMB DWA3500 Sell Sheet

CEMB DWA3500WG Sell Sheet

CEMB DWA3500TG Sell Sheet

CEMB DWA3500 Operations Manual

CEMB DWA3500 Exploded Drawings
